Solution for: Large-Scale AC/DC Motor, Mining Hoist Motor, and High-Voltage Generator Manufacturers.

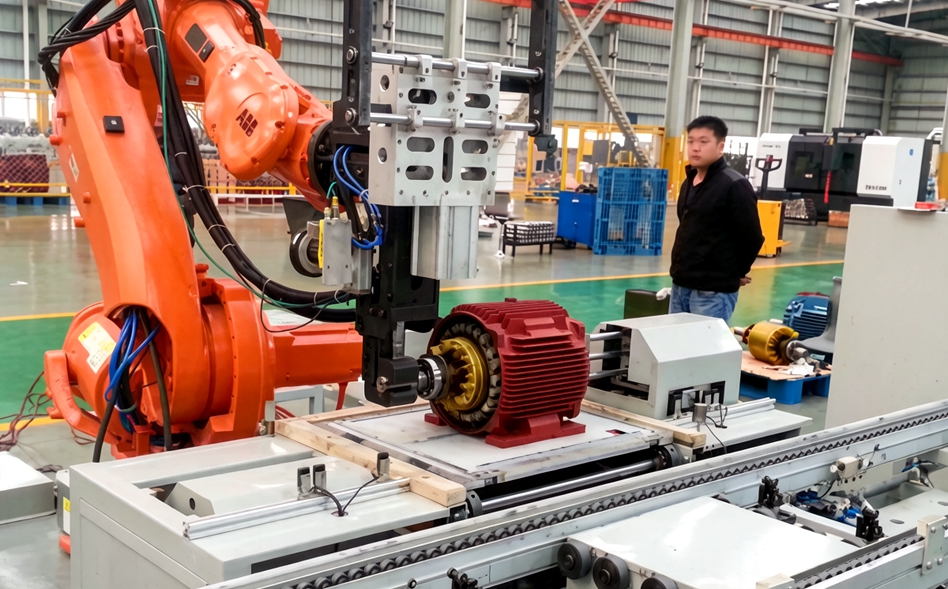

Our Heavy Duty Motor Assembly Line is engineered to revolutionize the manufacturing of large-scale motors ranging from 200kW to 2500kW. Moving away from traditional manual lifting and alignment, this system integrates Overhead Crane Systems with 6-Axis Heavy Payload Robotics to achieve micron-level precision in rotor insertion and stator stacking.
The core of this solution lies in the Robotic Rotor Pressing Station. Utilizing articulated robots with payload capacities exceeding 500kg, the system eliminates the risk of stator winding damage during heavyweight assembly. Combined with a RFID-enabled Conveyor System, each motor body is tracked seamlessly from the raw casting phase through to the final functional testing, ensuring a fully automated, traceable, and ergonomic production process.
To meet international manufacturing standards, the production line features the following high-specification parameters:
| Category | Item | Specification |
|---|---|---|
| General Line Data | Production Capacity | 15 – 20 Motors / Shift (Depending on Model Complexity) |
| Assembly Weight Capacity | Max. 5,000 kg per Unit | |
| Motor Power Range | 200 kW – 2,500 kW | |
| Frame Size (IEC Standard) | IEC 355 – 710 | |
| Robotic Pressing System | Robot Brand Options | ABB (IRB 6700 Series) / KUKA (KR QUANTEC Series) |
| Payload Capacity | ≥ 500 kg | |
| Reach (Max) | ≥ 3.0 meters | |
| Positioning Accuracy | ± 0.1 mm | |
| End-Effector | Custom Hydraulic/Pneumatic Self-Centering Chuck | |
| Conveyor & Logistics | Conveyor Type | Accumulating Roller Conveyor with Lift & Transfer Units |
| Drive System | SEW / NORD Servo Motor + Planetary Gearbox | |
| Positioning Accuracy | ± 0.5 mm | |
| Tracking Technology | RFID Tags integrated into Fixtures | |
| Automation & Control | Control System (PLC) | Siemens S7-1500 Series |
| HMI Interface | 15″ Industrial Touchscreen | |
| Data Interface | OPC UA / Modbus TCP (MES Compatible) | |
| Safety Standard | ISO 10218 / ISO 13849 (Safety Fencing & Light Curtain) | |
| Utilities | Power Supply | 3 Phase AC 380V / 50Hz |
| Air Supply | 0.6 MPa (Clean & Dry Compressed Air) |
